Our Work

Varied custom projects complete with precision and accuracy. Machining solutions for your complex and standard projects for competitive prices. Ask about our 24-hour service and rush orders.

Whether machined, ground, cut, or welded, we have the equipment and expertise to meet your needs.


Custom Machining


We have several different machines for your custom machining needs. The following machines handles our various precision milling work: Bridgeport Vertical; Supermax Verticle; Cincinnati Tool Master (Vertical Mill & Shaper). We have several smaller lathes that can also do precision turning: 18" Reed Prentice measures 26" between centers; 17" Summit measures 80" between centers and taper attachment; 16" Rockford measures 60" between centers; 15" Nardini measures 60" between centers and taper attachments; 12" Clausing Colchester measures 42" between centers and taper attachment. We have both vertical & horizontal band saws. Our Ellis Miter band saw for example, makes infinitely variable degree cuts. For sawing in large quantities we go automatic with our new Hyd Mech saw that was acquired in 2005. Our Thompson automatic surface grinder was also acquired in 2005.


Welding and Blazing Capabilities

Our welding capabilities are not limited with Miller welding machines which give us the options of tig, mig, and stick. For brazing and cutting,we have Victor torch rigs, and a Thermal Dynamics Plasma Cutter.


Custom Part Replacement


Precision machined parts are our specialty at Pete Burr Machine Works. Higher quality parts can be manufactured to replace original parts. A different material having more strength, hardness, or corrosion resistance may be used and the parts can be machined more precise.

For large part milling we utilize our Fryer VB-50 milling center with open-table design. Smaller precision machined parts are also milled on this center on a daily basis. With our highly trained, certified and conscientious operators this machine has highly accurate output on a timely basis, which pleases our industrial customers. For our customers' turned parts needs, our Okuma Crown Big Bore puts out product with consistent speed and accuracy. Combined processes of these two CNC centers allows us to be versatile for our customers' needs of complex parts in any quantity, made from any material.

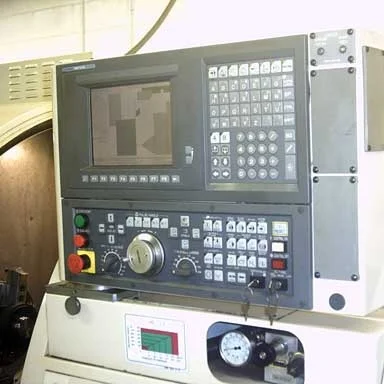

High Speed Precision CNC Machining

We are capable of high speed precision CNC machining with our Okuma Crown Big Bore L1060 and our Okuma ES-L6. Both of these turning centers has the advanced graphics and programming package. Our Fryer VB-50 VMC with Anilam 5300 control travels 30" x 50" x 24" and has an open table design for milling over-sized parts. All of these CNC machines are programmable for just one part or over a million parts.


Computer Aided Drafting Prints and CNC Programs

cnc programs.png

We make prints and CNC programs with our CAD/CAM software and issue part numbers to prints and sketches for future orders, or we can use your part numbers.

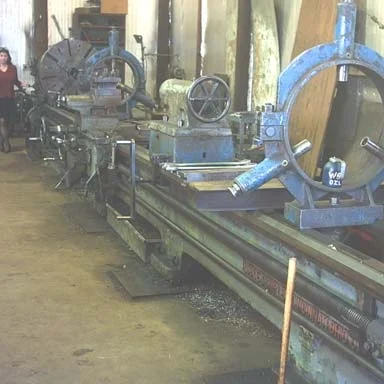

Big Lathe Work

Big lathe work is performed on two different machines here at Pete Burr Machine Works. The 36" Lodge & Shipley measures 22 Ft. between centers, and can handle a roll up to 3 Ft. in diameter by 33 Ft. long. The 27.5" Monarch measures 24 Ft. between centers, and can also handle large rolls.

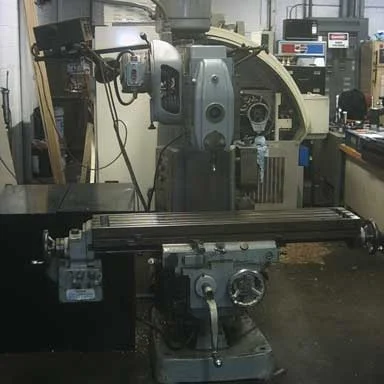

Keyways and Grooves


For cutting keyways and grooves of any size we have the 36" Ohio Shaper, the Morrison Keyseater, and the Cincinnati Tool Master utilizing the shaper attachment.

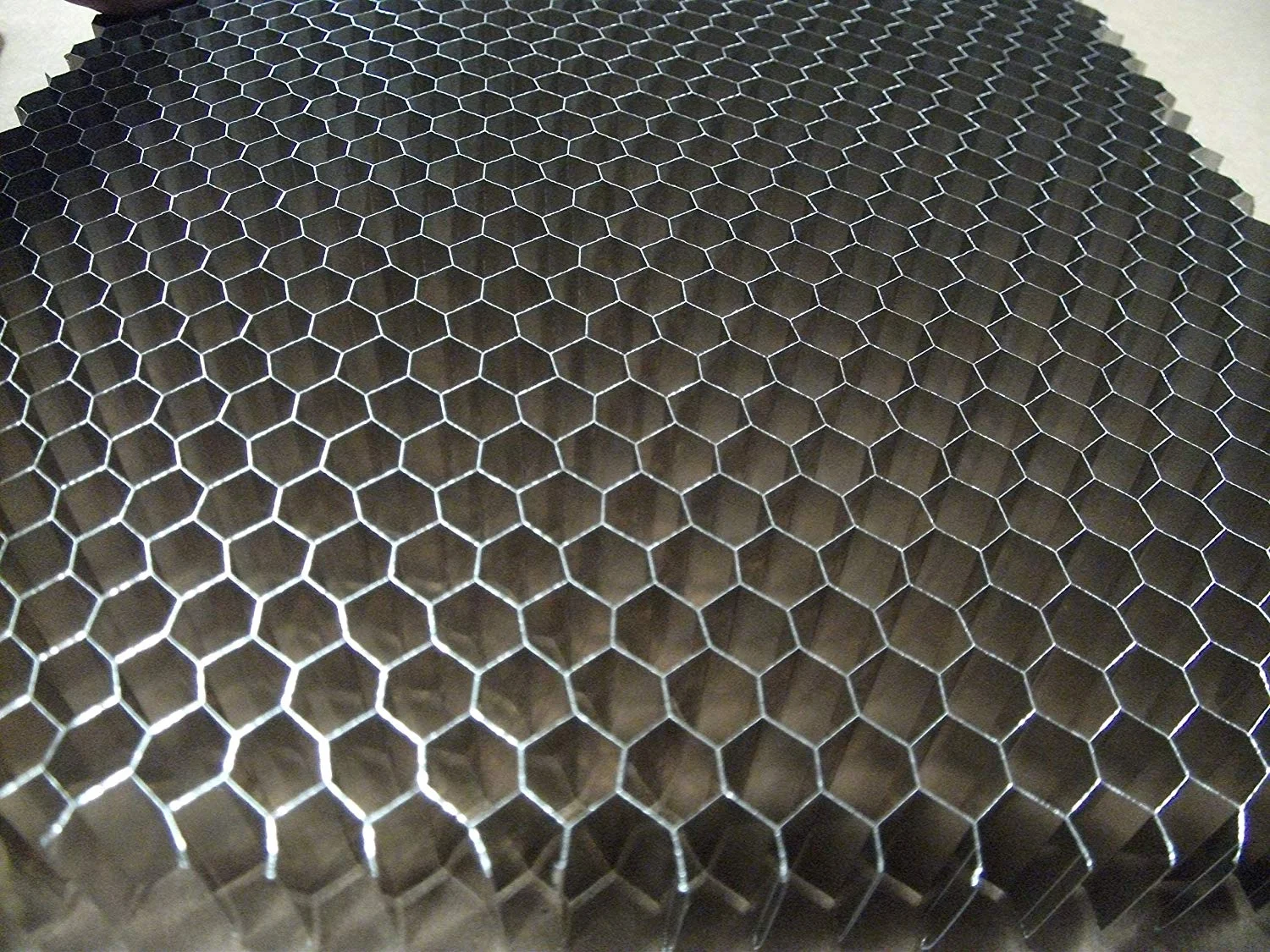

Screen Frames

We repair Screen Frames (air rectifiers) for non-woven machines.

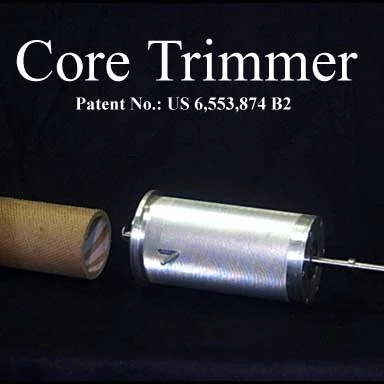

Core Trimming


Our own core trimmer makes cutting cardboard tubes easy.
